Atlas BP8000 3628.7 kg Baseplate 2 Post Car Lift
$456.95
Skip to product information
Atlas BP8000 3628.7 kg Baseplate 2 Post Car Lift
$456.95
Taxes included.
Shipping calculated at checkout.

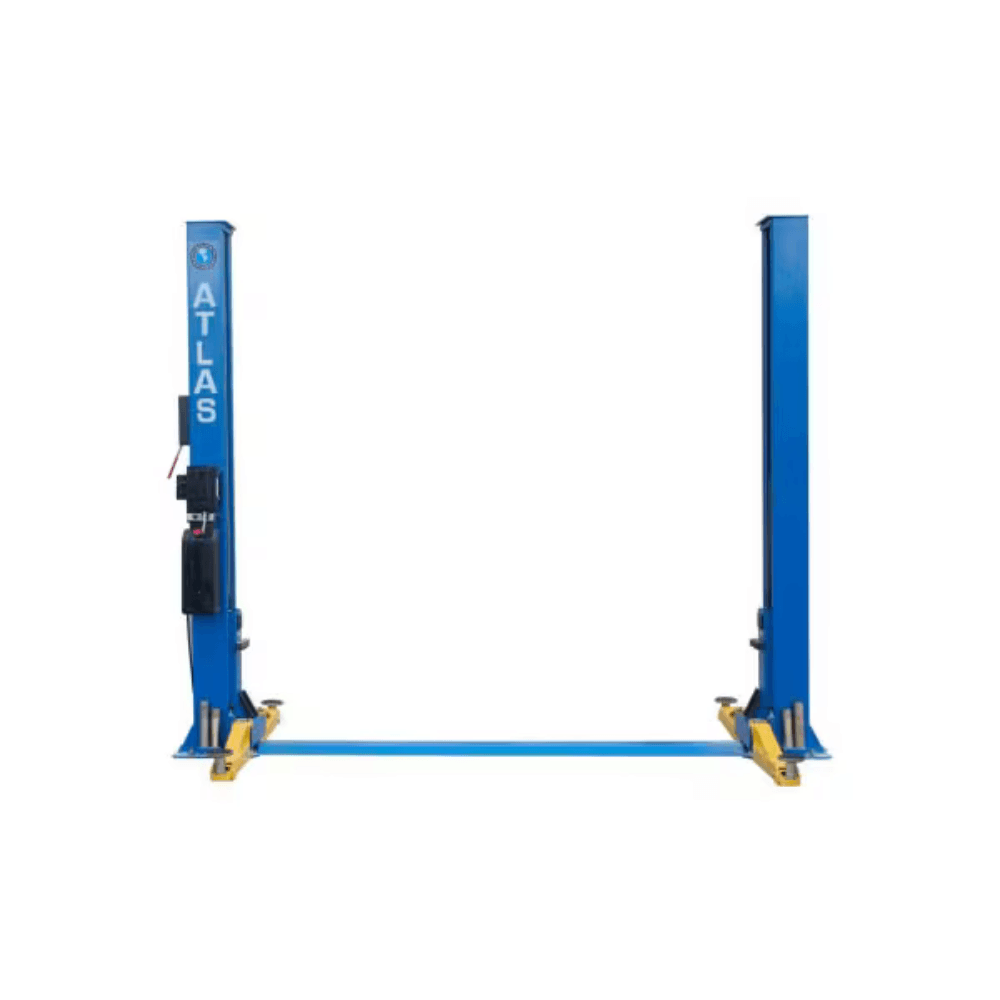

The Atlas BP8000 is a robust baseplate two-post lift engineered specifically for residential and light-commercial garages with low ceiling heights. Standing at an overall column height of 274.3 cm, this open-top lift allows installation in spaces with ceilings as low as 281.9 cm while delivering a powerful 3628.7 kg lifting capacity.
Featuring versatile Super-Symmetric arms with automatic restraints and a single-point safety lock release, it easily accommodates cars, SUVs, and light trucks in both symmetric and asymmetric positions. Dual hydraulic chain-drive cylinders provide smooth lifting performance, supported by a heavy-duty steel structure and an included 12-piece truck adapter set.
Key Features
| Lifting Capacity | 3628.7 kg |
| Overall Height | 274.3 cm |
| Overall Floor Width | 335.3 cm |
| Outside Column to Outside Column | 315 cm |

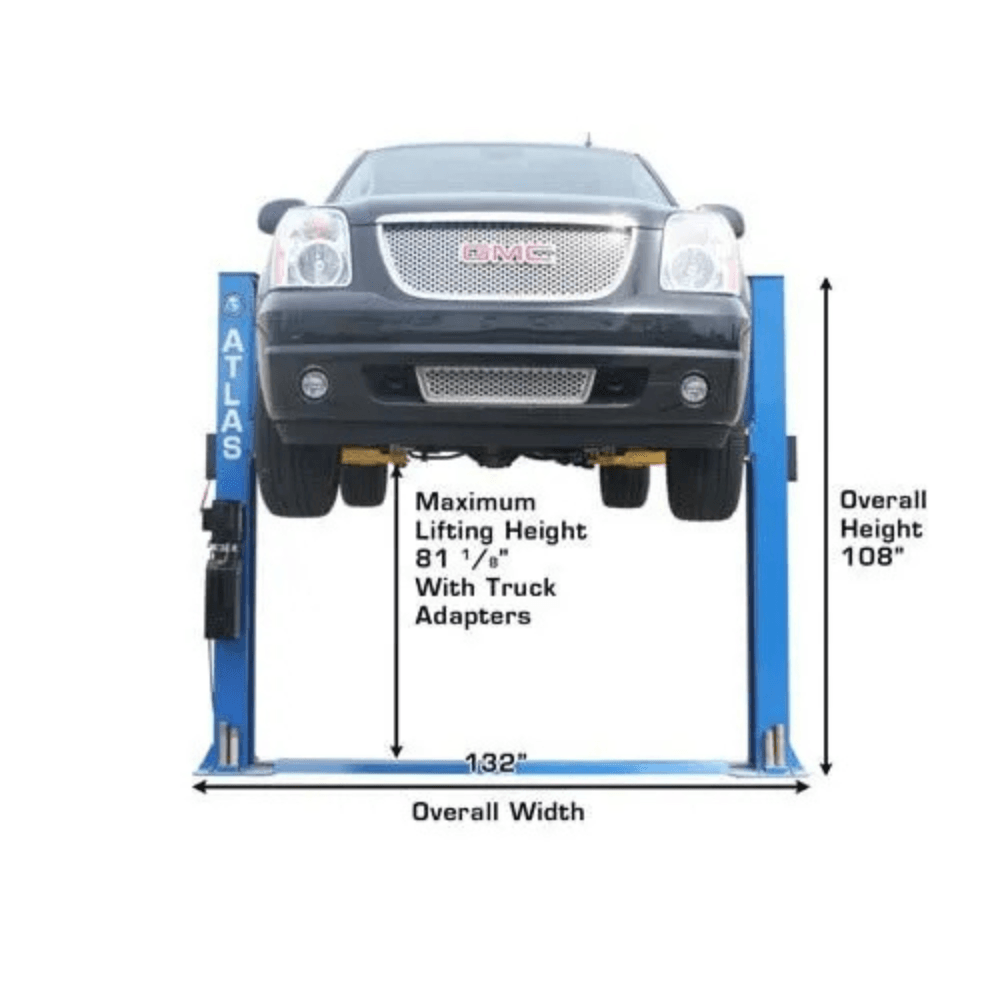

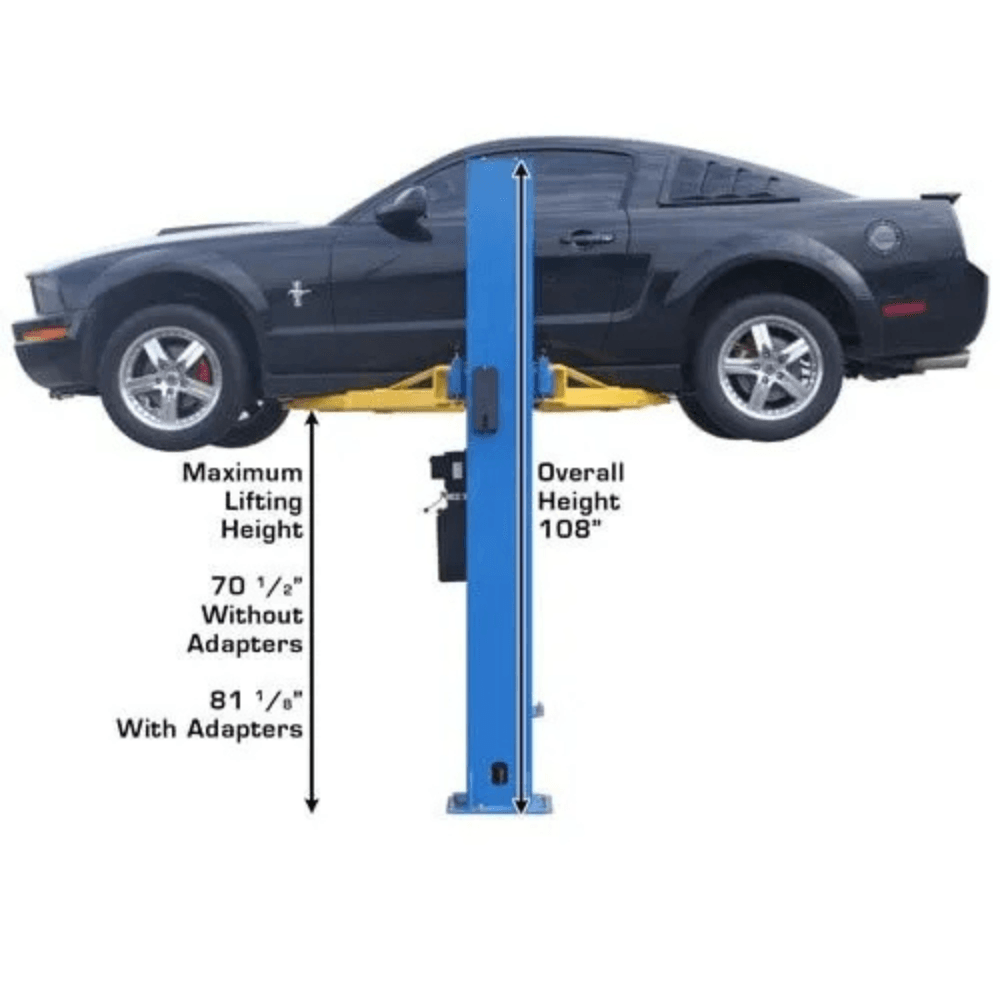

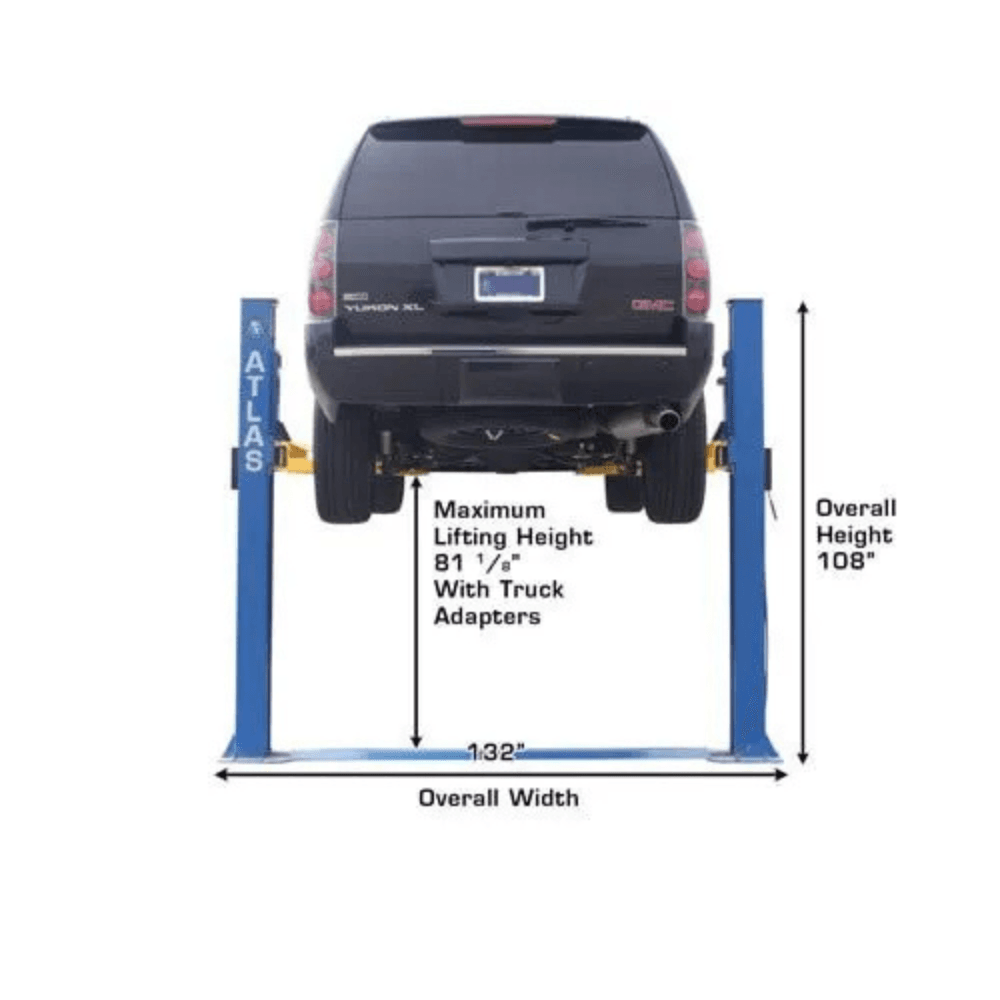

| Maximum Lift Height (Without Adapters) | 191.8 cm |
| Maximum Lift Height (With Adapters) | 219.7 cm |
| Minimum Arm Height | 10.2 cm |
| Inside Column Width | 277.2 cm |
| Drive-Thru Clearance | 251.5 cm |
| Column Size | 18.4 cm x 27.9 cm |
| Column Thickness of Steel | 6mm |
| Base of Lift | 44.5 cm x 45.1 cm |

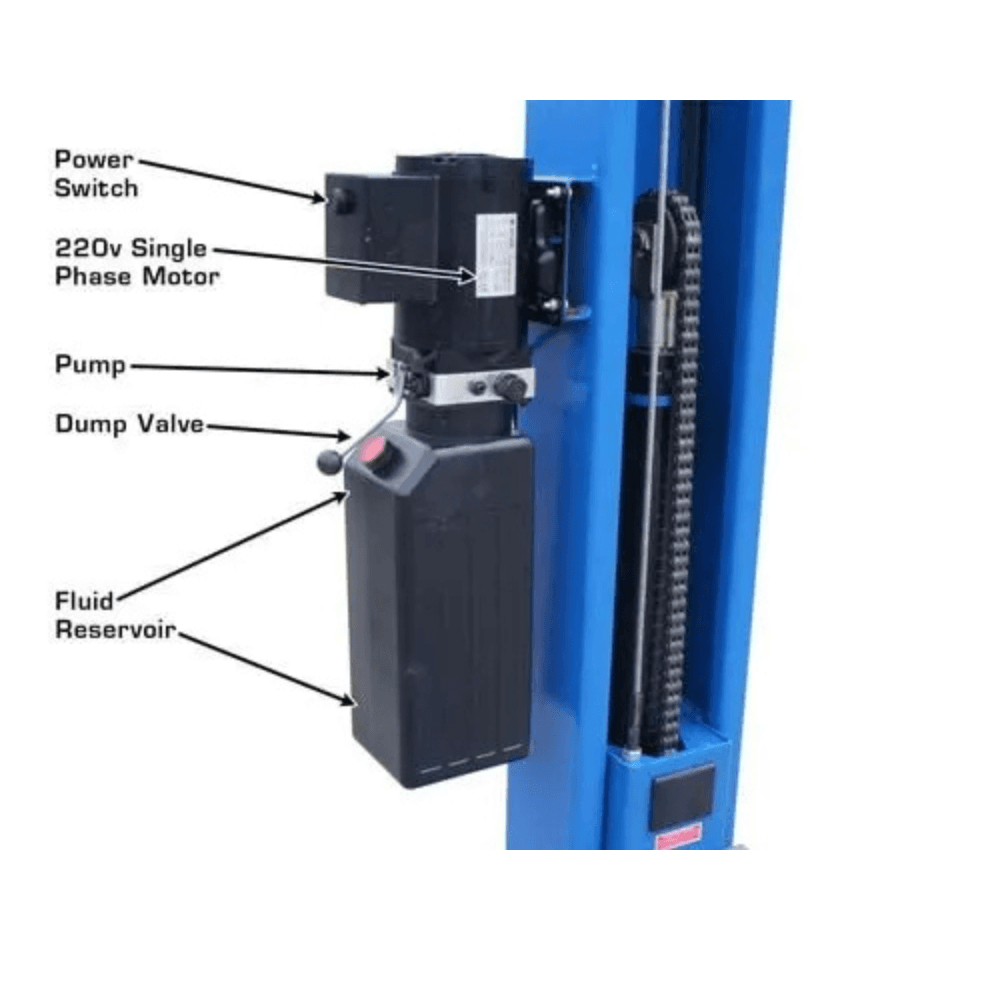

| Motor / Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 11.4-18.9 L AW32 or AW46 (Not Included) |
| Shipping Weight | 589.7 kg |
| Adapter Heights | 4 Each: 5.1 cm, 7.6 cm, 15.2 cm |
| Arm Hole / Adapter Peg Size | 1.5″ |
Highlights
- 8,000 lb. Lifting Capacity – Suitable for cars, SUVs, and light trucks.
- Designed for Low-Ceiling Garages – Total height of 108″ (9 feet) allows installation in spaces with ceilings as low as 9′ 3″.
- Baseplate, Open-Top Style Lift – Provides structural stability without an overhead beam.
- Super-Symmetric Arm Design – 2-Stage Front Arms & 3-Stage Rear Arms for enhanced flexibility. Allows vehicles to be lifted in both symmetric and asymmetric positions.
- Automatic Arm Restraints – Ensures secure positioning during lifting.
- Single-Point Lock Release – Allows simultaneous unlocking of both columns for added convenience. Enhances safety and ease of operation.
- Double Safety Lock System – Provides an extra layer of security.
- Dual Hydraulic Chain-Drive Cylinders – Ensures smooth and reliable lifting performance.
- 12-Piece Truck Adapter Set – Expands compatibility for a wider range of vehicles.
- Mounting Hardware Included – For installation.
Compatibility
Suitable for lifting passenger cars, SUVs, and light-duty trucks up to 3628.7 kg in symmetric or asymmetric configurations.
Warranty
Warranty: 5-Year Structural, 2-Year Hydraulic (Parts Only).
What's included
- Atlas BP8000 Baseplate Two-Post Lift
- 12-Piece Truck Adapter Set (4 each: 5.1 cm, 7.6 cm, 15.2 cm)
- Mounting Hardware
