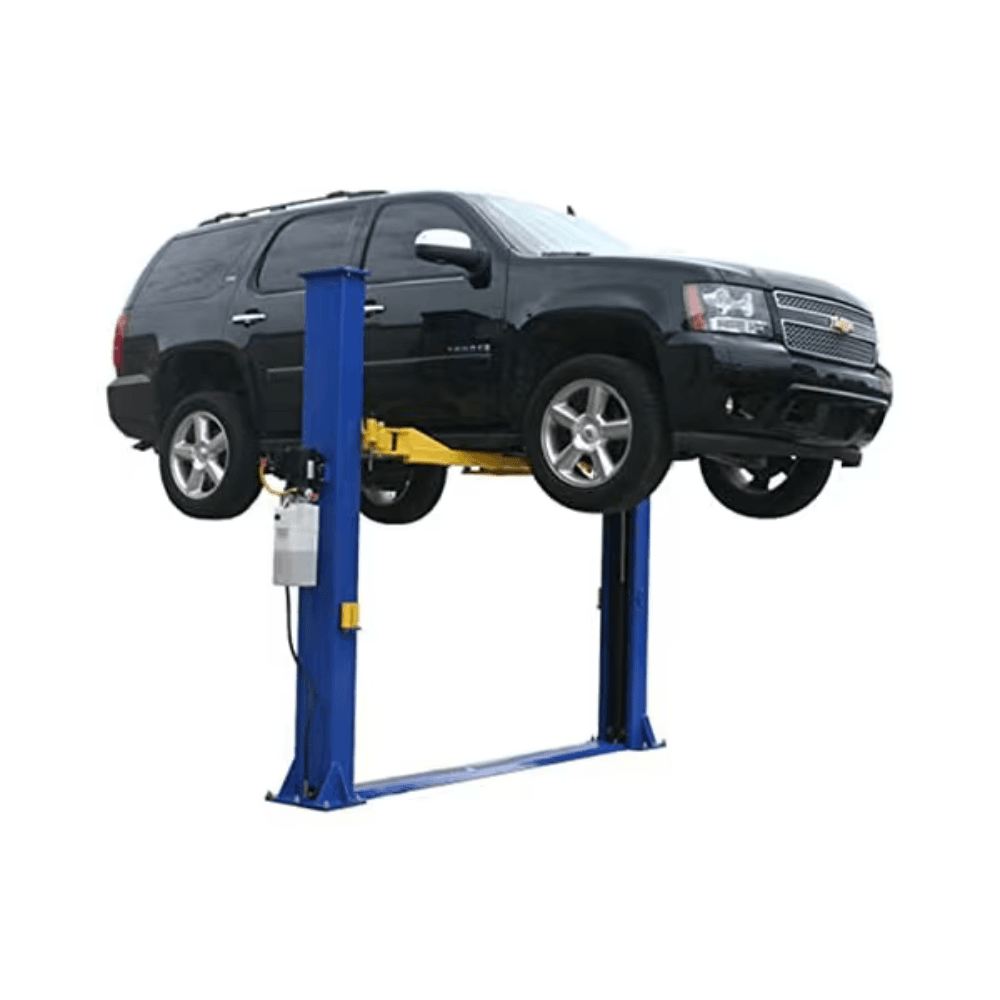

Atlas 9KBPX 4082.3 kg Baseplate 2 Post Car Lift

The Atlas 9KBPX is a heavy-duty baseplate-style two-post car lift engineered specifically for residential and commercial garages with low ceiling clearance. Built with dual hydraulic chain-drive cylinders and a chain-over-roller system, it delivers smooth and reliable 4082.3 kg lifting power for cars, SUVs, and light-duty trucks.

Featuring symmetric arms, automatic arm restraints, and a spring-loaded secondary lock safety system, this lift ensures balanced vehicle positioning and secure operation. Its open-top design routes cables and hydraulic lines across the floor, making it ideal for facilities with ceilings as low as 289.6 cm.

Key Features

Highlights

• 9,000 lb. Lifting Capacity: The Atlas 9KBPX is rated to lift vehicles weighing up to 9,000 pounds, suitable for a wide range of vehicles, from compact cars to mid-size SUVs and light trucks.

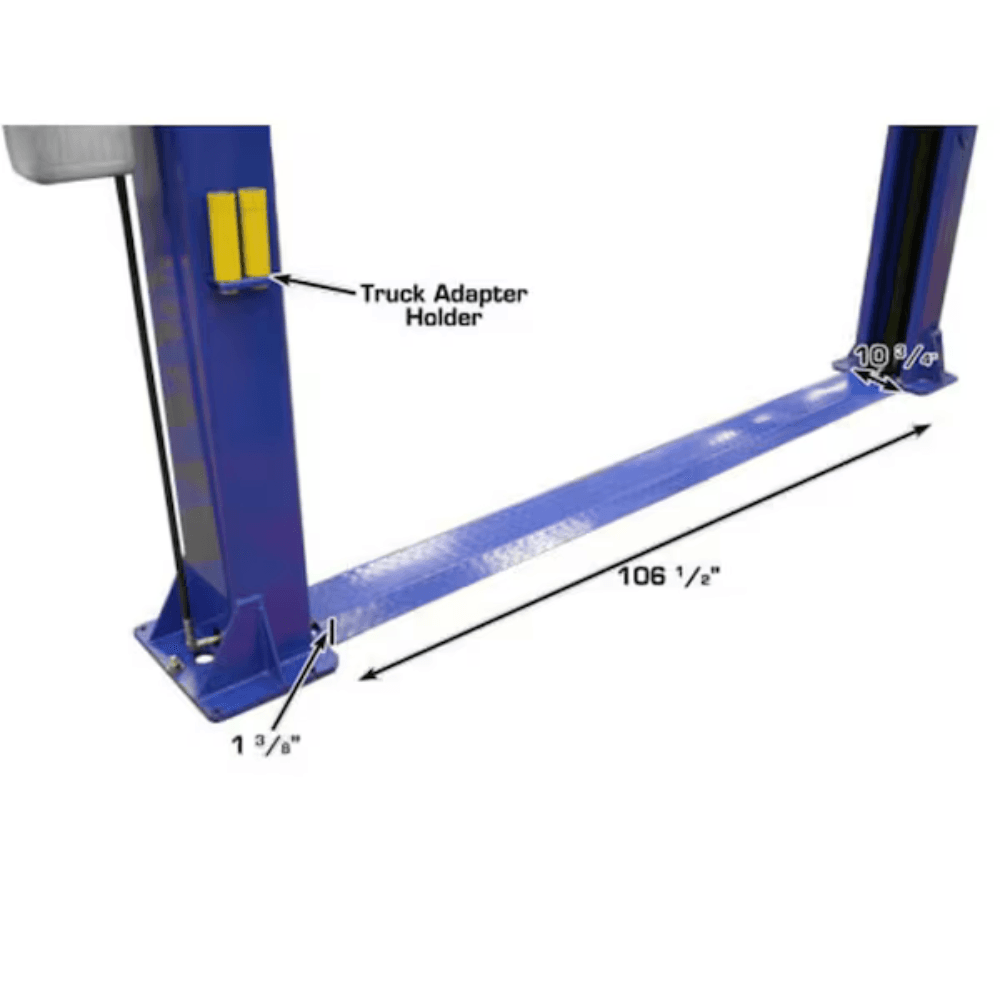

• Baseplate, Open-Top Style Lift: This model features a baseplate design, where hydraulic lines and equalizing cables run along the floor. This design is suitable for garages with low ceilings, as it eliminates the need for overhead clearance.

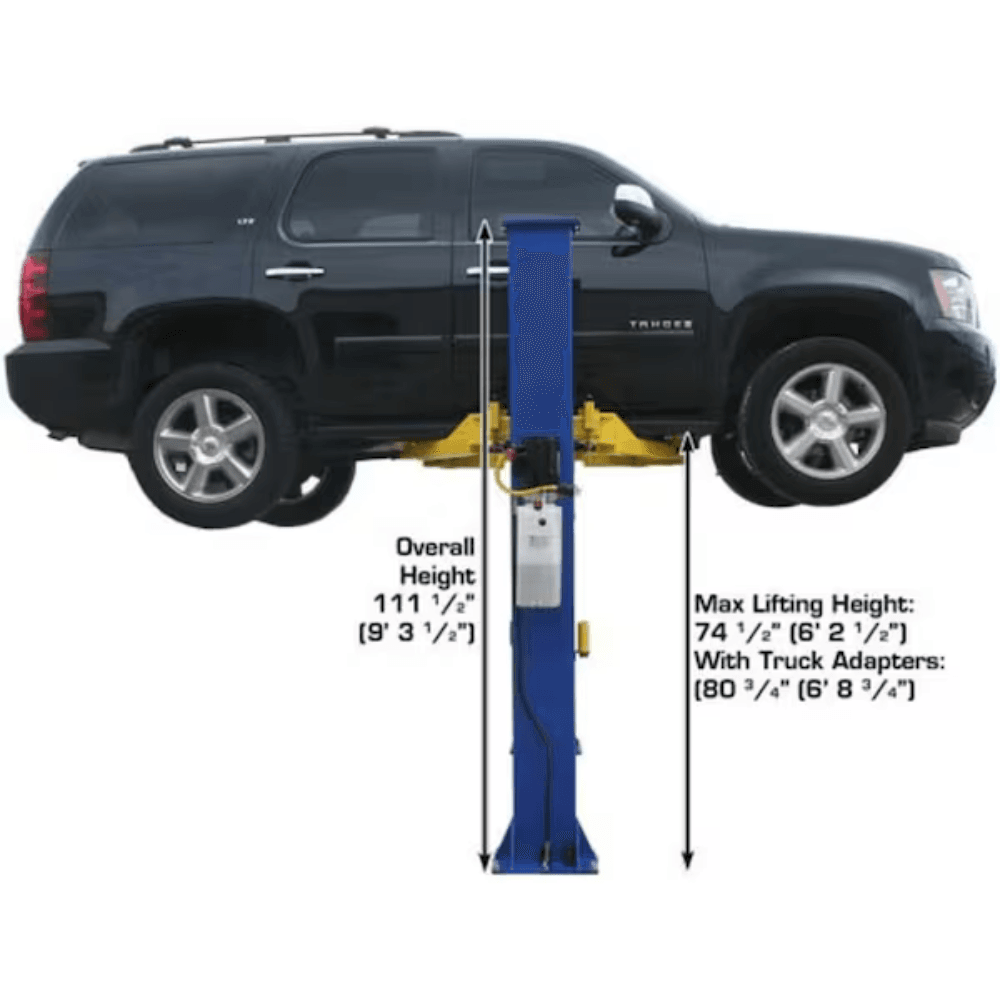

• Designed for Low Ceiling Clearance: With columns standing at 9 feet 3 ½ inches, this lift is designed for installation in garages with ceilings as low as 9 feet 6 inches.
• Symmetric Arms for Balanced Lifting: The symmetrical arm design provides balanced weight distribution when lifting vehicles, distributing pressure across the lift points.
• Dual Hydraulic Chain-Drive Cylinders: The lift operates using a dual hydraulic chain-drive system.
• Secondary Lock System (SLS) for Safety: This spring-loaded safety system automatically engages in the event of a slack or broken chain to prevent sudden vehicle drops.
• Automatic Arm Restraints: Each lifting arm features automatic locking mechanisms to keep them in place once the vehicle is lifted, preventing movement or shifting during use.
• Dual Point Lock Release: The dual lock release system allows for the locks to be disengaged when lowering the vehicle.
• 8-Piece Truck Adapter Set: Included with the lift is an adapter set to accommodate vehicles with higher lifting points, such as SUVs and light-duty trucks.
• Mounting Hardware Included: The Atlas 9KBPX includes the necessary mounting hardware.

Compatibility

Compatible with passenger cars, crossover vehicles, SUVs, and light-duty trucks up to 4082.3 kg. Not recommended for large commercial vehicles or diesel dually trucks.

What's included

• Atlas 9KBPX Baseplate Two-Post Lift assembly
• 8-Piece Truck Adapter Set (4 x 3.8 cm and 4 x 12.7 cm adapters)
• Complete mounting and installation hardware
